Shenzhen OLAX Technology Co.,Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Olax |
| Model Number : | G5018 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000piece/month |
| Delivery Time : | 10-15 work days |

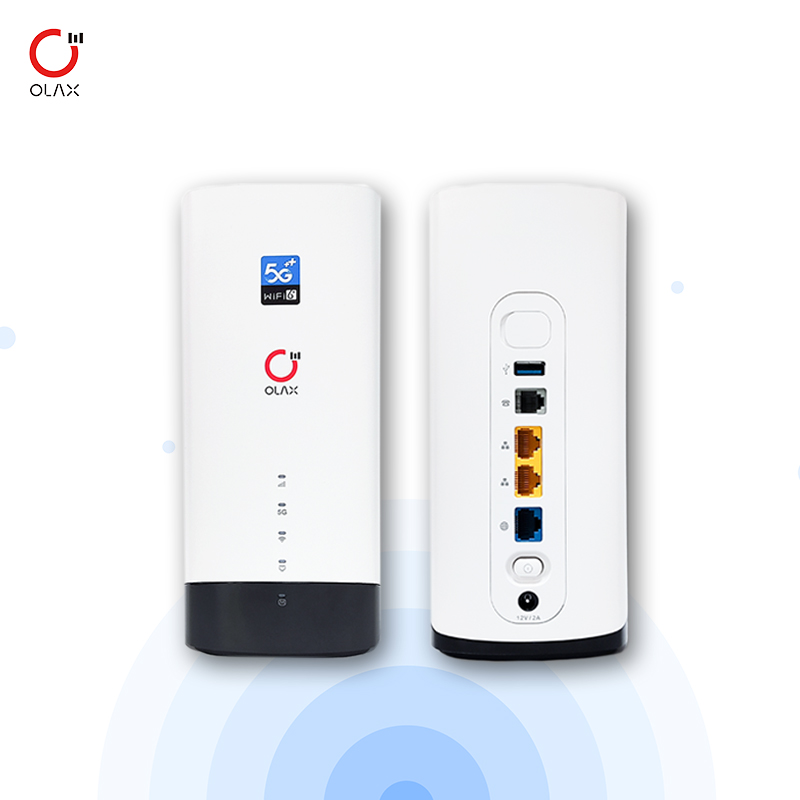

OLAX G5018
5G CPE Router
OLAX G5018 is a high-performance wireless communication product developed by Shenzhen OLAX Technology based on 4G network requirements. It is mainly used for data transmission services, equipment monitoring, wireless routing and other functions. Olax MF6875 adopts high-performance processor, which can process protocol and large amount of data at high speed. It can be used with a variety of 4G CAT4 module, providing 802.11b/g/n Wi-Fi access.
Device Main Feature
1. With RJ45 port for LAN/WAN;
2. Device working with Battery and working by Power adapter without Battery;
3. UE Category4;
4. WIFI MIMO2*2;
5. maximum connection with 32 users.
Install SIM Card and Battery
1. Power off the MiFi.
2. Remove the back cover and battery.
3. Insert the SIM card into the card slot in the correct position.
4. Install back cover and battery.
1. Revision
| Date | Version | Editor | Note |
| 2022/04/26 | 1.0 | Walker | First release |
2. Hardware specification
2.1. Interface
| Power button | Press and Release Power on/off |
| Power Source | DC 12V/2A |
| Functional button | Press and start enabling WPS feature |
| LAN port | 2 x 1GE LAN Ports (RJ45) |
| 1 x 1GE WAN port (RJ45) | |
| USB port | USB 3.0 high speed for external Disk |
| External | 1 x TS-9 connector for Tx |
| Antenna | 1 x Tx-9 connector for Rx |
| Tel | 1 x RJ11 port for Tel |
| LED display | - Signal strength indicator - 5G network status - Wi-Fi Status - LAN Port status - Mode to indicate Power status or FOTA status |
| Card s lot | One 3FF (Micro) UICC/USIM card s lot |
| Reset button | One reset button hole (Hidden beside SIM slot) |
2.2. RF functions
| Cellular | 5G/LTE | Qualcomm Snapdragon X55 |
| Standard compliant: 3GPP Release 15(both LTE and 5G) | ||
Supported: NR Sub- 6: N1,N3,N5,N7,N8,N20,N28,N38,N40,N41,N78 LTE: B1,B3,B5,B7,B8,B20,B28,B38,B40,B41 |
Modulation: Sub-6 UL: 256QAM, DL: 256QAM LTE DL:256QAM, UL:256QAM | ||
MIMO: Sub-6 DL: 4x4, UL:2x2 LTE DL:4X4, UL:1X1 | ||
| Antenna (both LTE and 5G):4 internal antennas | ||
Peak data rate: Sub-6 DL: 4.6Gbps, UL:450Mbps | ||
| Output power class: 22 +/-1 dBm (class 3) | ||
| Wi-Fi | QCA6391 | |
| Standard compliant: IEEE 802. 11 a/b/g/n/ac/ax | ||
| 2.4 GHz (2x2 MIMO) +5G band (2x2 MIMO) | ||
| AX1800 | ||
2.3. Environment
| Temperature | Operating: 0°C to 40°C |
| Storage: -20°C to 60°C | |
| Humidity | Operating Humidity: 5 to 95% RH |
| Storage Humidity: 5 to 95% RH | |
| Non-condensing |
2.4. Physical specification
| Packaging Items | Casing Dimension (WxDxH): 95* 100*205mm |
| Weight(Device):~865g | |
| Weight (Box & Device & series) :~ 1432g |
3. Software specification
3.1. Features
| System Features | Web UI/Multiple language supported |
| SMS/Quota/APN/PIN Management | |
| Network Selection | |
| Data Usage / Statistic | |
| DHCP Server | |
| NAT | |
| IP Firewall | |
| Proxy DNS | |
| Parental control - Parental controls designed to allow control of Internet access on all devices connected to your home network. | |
| Self-Check - Self-examination when it can’t connect to the network | |
| Port Settings - Port forwarding, including single port, multiple ports or a range of ports | |
| Security - SIM Lock and Secure boot features. | |
Firewall - DMZ/MAC Filter/IP Filter/URL Filter/Port Filter Port Settings | |
| Wi-Fi AP Features | 802. 11 a/b/g/n/ac/ax/ 2.4GHz+5GHz |
| MU-MIMO | |
| Auto Channel Select (ACS) | |
| Hidden SSID | |
| Maximum number of connections:32 | |
| Security Modes : WPA/WPA2 PSK, & WPA/WPA2/WPA3 mixed mode | |
| Access Control : STA blacklist/white list | |
| WPS : Pin and PBC, WPS2.0 |
4. Mechanical & ID designs
4.1. Dimension
Casing Dimension (WxDxH): 95* 100*205mm
5. Package
5.1. Accessories
Adapter | 12V/2A adapter |
| EU: EU/UK/US plug (M type) | |
| White color | |
| QSG | Quick start guide |
| Safety warning | Safety warning |
.5.2. Packing
Box | Box label |
| Inner paper | |
| Inner box | |
| Color box | |
| Carton | Carton label |
| Carton | |
| Pallet | Pallet label |
| Pallet |
