Shenzhen OLAX Technology Co.,Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | OLAX |
| Model Number : | OLAX U90 |
| Certification : | ce.ROHS |
| Price : | Negotiable price |
| Payment Terms : | T/T |
| Supply Ability : | 10000pcs/month |
| Delivery Time : | 28-35work days |

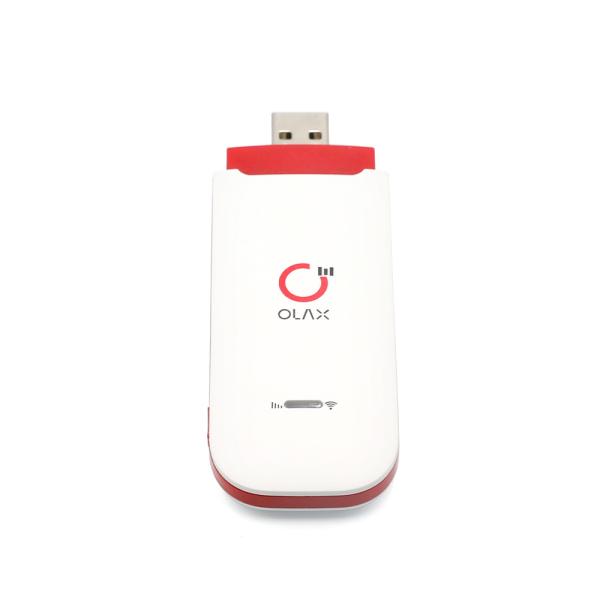

4G USB WiFi Dongle SIM Portable Mobile Internet Devices B28ab Olax U90 for Home Office Car
Product description
How to use:
1. Push the back cover down.
2. Insert the SIM card
3. Plug the USB port into a power source
4. Connect to WiFi, then you can use the Internet
5. Connect to WIFI, open 192.168.0.1 in the browser to enter the
background, the background can modify the WIFI name and password
Note:
1.Not just a 4G USB modem, but also a USB Wi-Fi router.
2.Wireless access works on 3G, 4G and Wi-Fi networks.

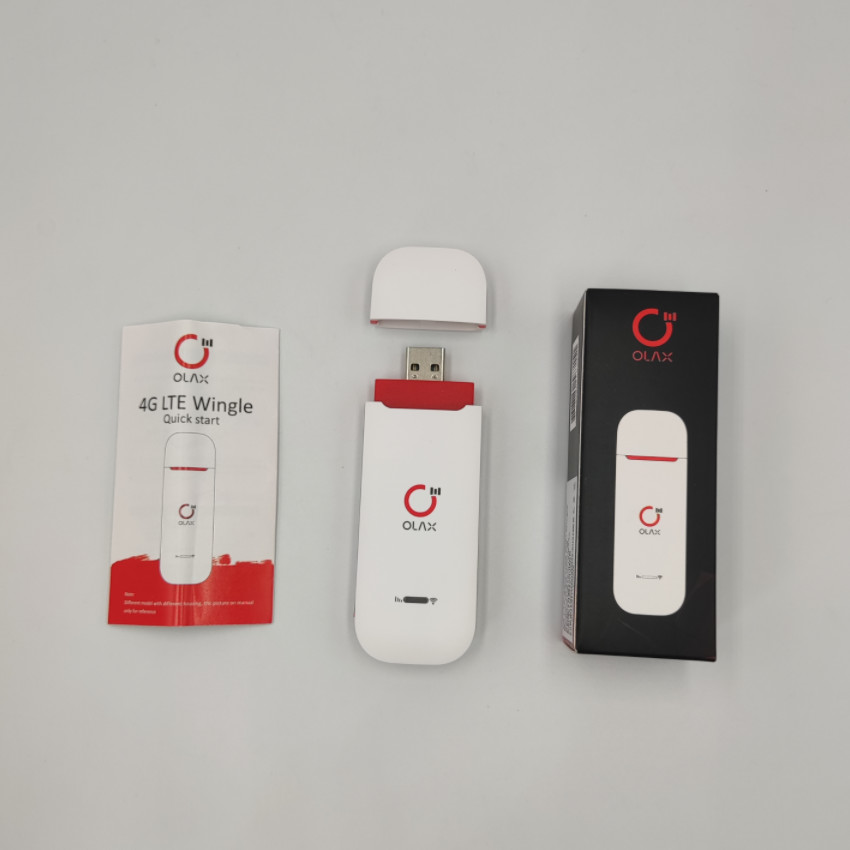

Package Contents:
| Item | Description |
| CPU | ZX297520V3T |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 128Mb Nor Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| USB Port | Standard USB 2.0×1 for Power supply |
| LED Indicators | WLAN LED×1(Green) LTE Connection Status LED×2(Red/Blue) |
| Dimensions | 96mm (H) x 34mm (W) x 12mm (D) |
| Weight | About 38g |
| Standard | IEEE 802.11b/g/n |
| Channel Bandwidth | 20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps 802.11g:54Mbps 802.11n:150Mbps |
| Modulation | DSSS/CCK,OFDM |
| Receive Sensitivity | -82dBm in 802.11b -72dBm in 802.11g -66dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 15dBm in 802.11g 14dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2dBi |
| Active User | Max 10 |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management | PIN Management SIM Lock Support PIN/PUK certification |
| Network Connection Management | Automatic network mode setting Manual network mode setting Automatic dial-up connection Manual dial-up connection Automatic reconnection function Support roaming dialing Manual disconnect WEBUI display information |
| WLAN | Configure Network Name(SSID), Password Wi-Fi basic settings Wi-Fi security settings WPS setting Wi-Fi coverage settings Wi-Fi black and white list function |
| Firewall | IP/MAC/URL Filter UPnP settings DMZ settings |
| Statistics | LTE Status Connection Time System Up Time Device Status DHCP Client List Wi-Fi Station List LTE Status Firewall Status |
| Maintenance | Date & Time setting DHCP settings Reboot Restore factory settings Firmware upgrade locally/OTA (over the air) |
| SNTP | SNTP function SNTP supports daylight saving time |
| Operating Temperature | -10℃ ~ 50℃ |
Storage Temperature | -20℃ ~ 60℃ |
Operating Humidity | 5% ~ 95% |
Product images
|
|
